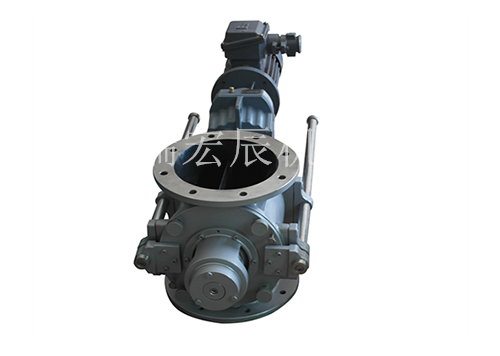

快速清洗旋转阀可广泛应用于食品和医药行业的有高卫生要求的场合，拆卸方便，易于进行快速清理工作，符合高，要求的卫生标准。我公司现有两种快拆易清理旋转阀，一种是滑杆式， 另一种是快开门式，无死点，操作方便。
1、滑杆式：可原地抽出转子清理，清理完毕后转子推入，旋紧定位螺栓即可。
2、快开门式：打开门，松开固定螺栓，抽出叶轮，清洗叶轮后将叶轮推入，旋紧定位螺栓。优点是可把叶轮异地清理。
产品特点
1．壳体及主要零部件采用精密铸造，外形美观。
2．转子易于拆卸，方便清洗。
3．转子设有多种形式，适用多种不同特殊物料；转子轴承采用多层保护系统；确保长期工作。
4．与物半斗接触部位的材料均采用食品级材料，并抛光处理。
The products summary:
Quick cleaning type rotary valve is extensively used in the occasion which needs high hygienee requirements in food and medicine industry. The product is easy to disassemble and to clean so it conforms to high hygiene standards. Now our company has two kinds of Quick cleaning type rotary valve. One is litter type, the other one is Quick-opening gate type, which is with nodead corner. Both of them are easy to operate.
1. Litter type：
The rotor can take out.easily. VVhen the rotor was cleaned up push it into the valve,then tightening the positioning bolts.
2 Quick-open gate type:
Open the door, release the position bolts, take out the impeller Push it into the valve until cleaned it up,then tightening the positioning bolts. The advantage is the impeller can wash in different localities.
The products characters:
1 .The shell and the mail Darts are accuracy and beautiful.
2.The rotor is easy to disassemble and clean.
3.Rotor has a variety of forms which is appl wide rang of special materas. Rotor is bearing a multi-Iayered protection system to ensure long-term work.
4.The parts contacted with food are all used food-grade materials,which are processed and polished.

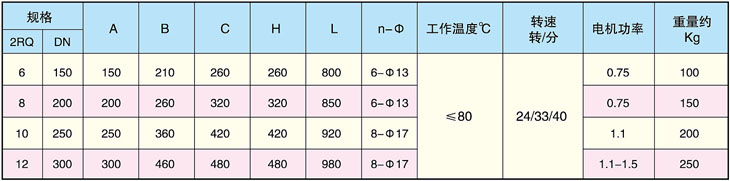

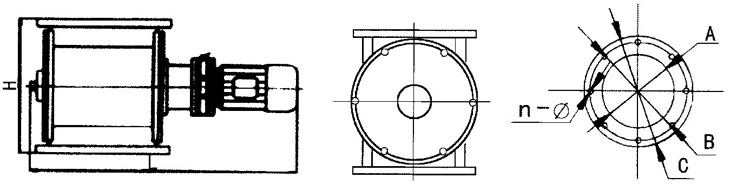

技术参数
